Shivvers Channel-Lock Floors

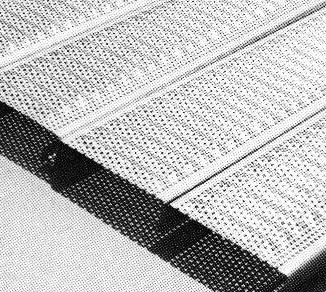

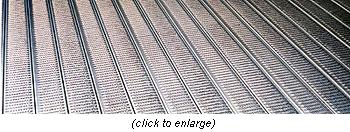

Shivvers standard Channel-Lock Floor with its 23% open area is one more key feature that sets Shivvers dryers apart from other in-bin continuous flow dryers. It has an 8” plank with a patented center rib design which gives the appearance of two 4” planks side-by-side. This rib gives far greater strength especially with the In-Bin Continuous Flow Drying Systems and deep depth aeration applications.

Shivvers floors with their generous open area aid in defeating the static pressure problems incurred with higher grain depths and multiple fan situations.

Shivvers Channel-Lock Floor Advantages:

Floor Planking is made form 20 gauge steel and embossed for optimum strength
Standard floor has round hole punch of .094" making an open area of 23%
Optional small grain floor has a round hole punch of .054" making an open area of 19.5%
Includes heavy 20 gauge flashing and installation hardware
Has 8" plank with reinforce center rib
Fast and easy installation

Steel Floor Supports:

Shivvers Steel Floor Supports are ideal for use under drying and storage floors. Rails are made with a channel opening on the underside that accepts the support legs. The legs snap into place for ease of installation. Rails are tied together at predetermined spacings to maintain the strength required under grain depths of up to 30 feet (16 feet for Circu-Lators). The narrow design allows maximum airflow with a minimum of obstruction.

Steel Floor Support Advantages:

Maximum air flow
No air channeling
Sturdy 16 gauge steel
Quick and easy to install
Supports available to fit Performance System in bins 24' to 48' in diameter
